ER66/ER88 series

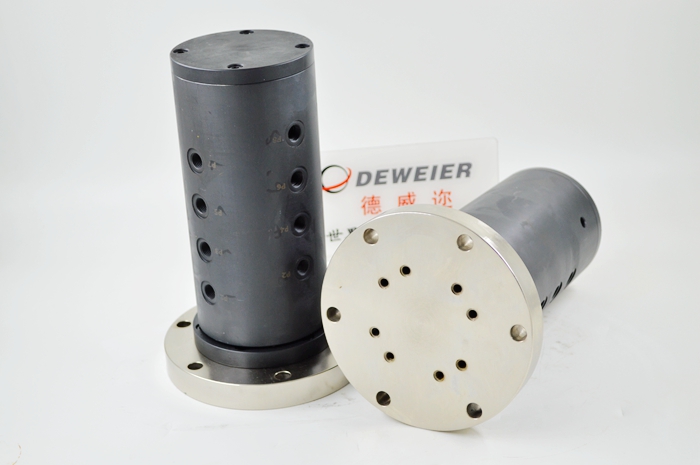

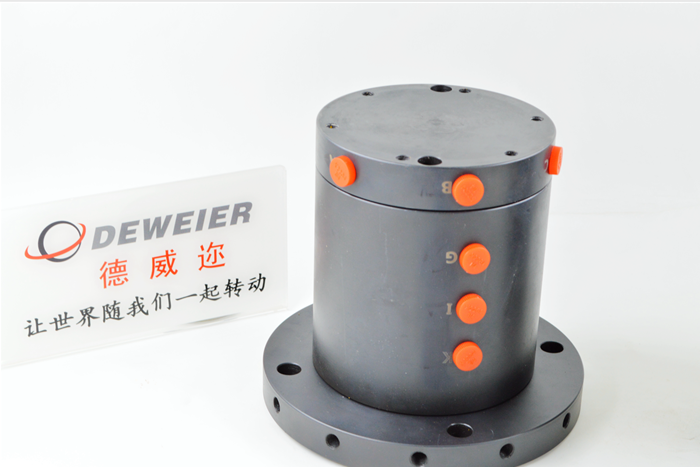

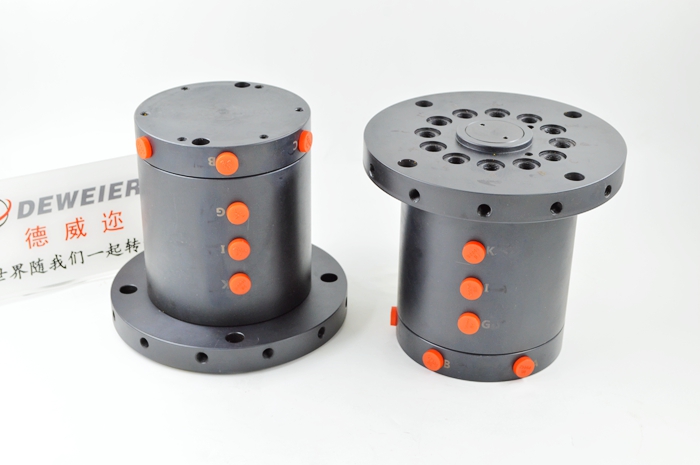

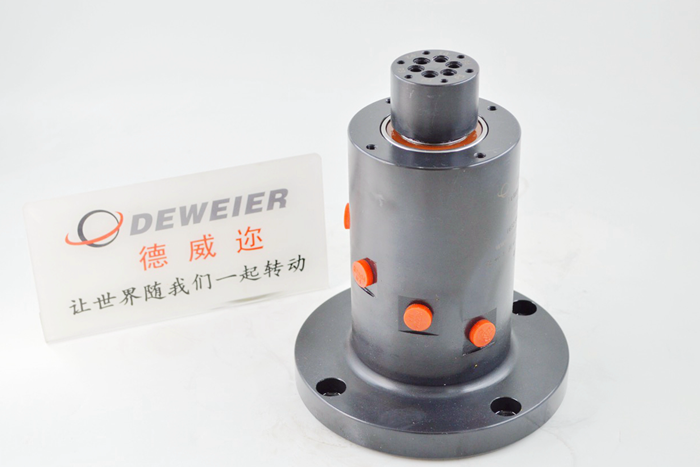

ER66/ER88 series double turntable rotary joint

PRODUCT INTRODUCTION

ER66/ER88 series

ER66/ER88 series double turntable rotary joint
ER66/ER88 series
ER66/ER88 series
ER66/ER88 series
ER66/ER88 series

FUNCTIONALITIES

High durability | compact | low torque

1. Optional ports:12 |16 ports

2. Fluid used: hydraulic oil/air/cooling water/vacuum

3. Working pressure: up to 25MPa

4. Oil distributor and joint provided separately

5. Special sealing components with low resistance are used to minimize sliding resistance and achieve low torque during startup.

6. Application example: 12-port typing can be used to control 12 single acting hydraulic cylinders or double acting hydraulic cylinders!

7. Hydraulic flow control valve and oil flow control valve

TECHNICAL SPECIFICATIONS

DOWNLOAD

Not downloaded, please click to fill out the form to obtain.
ER66/ER88 series

APPLICATIONS

Understand how our rotary joint is applied.

Machine tool industry

Machine tool industry

Dewel rotary joint is a high-performance and high-precision mechanical sealing equipment that can be used in the machine tool industry, such as CNC machine tool spindles, deep hole drills, milling and grinding machines.

Read More
Machine tool industry

Machine tool industry

Dewel rotary joint is a high-performance and high-precision mechanical sealing equipment that can be used in the machine tool industry, such as CNC machine tool spindles, deep hole drills, milling and grinding machines.

Read More
