K series

FUNCTIONALITIES

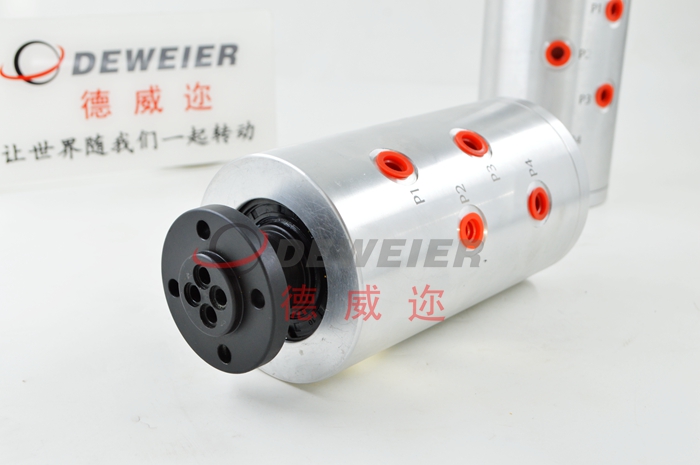

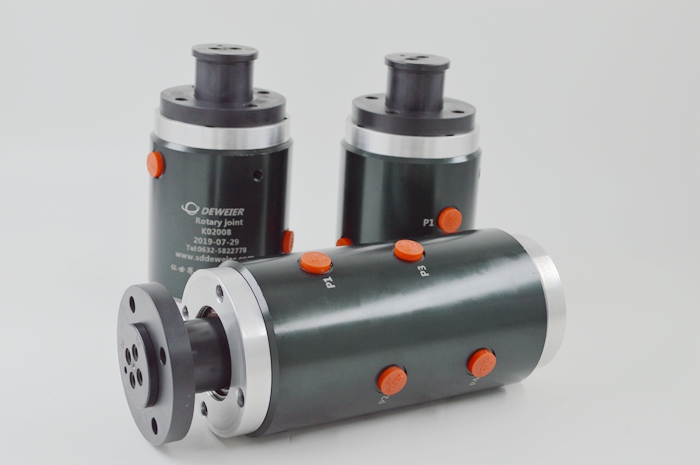

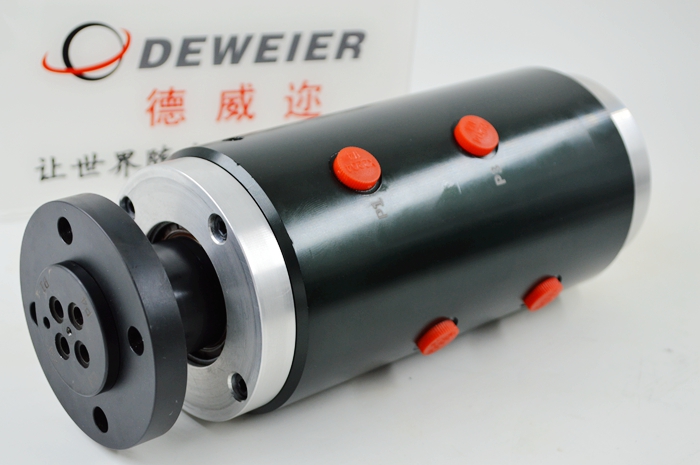

K series flange-connected rotary joint adopts a non-contact oil film sealing structure and has 2 independent oil ports on the end face;

1. Supported by two wide and high-precision bearings, the operation is smooth and the bearings require no maintenance for life;

2. High speed and high pressure, no sealing ring contact wear, ensuring long-term trouble-free operation of the product and low rotation torque;

3. No frictional heat is generated during high-speed operation; the rotation torque is not affected by working pressure and temperature;

4. Can operate at a maximum speed of 5000 RPM; the drain hole design prevents leakage to the outside and affects the environment;

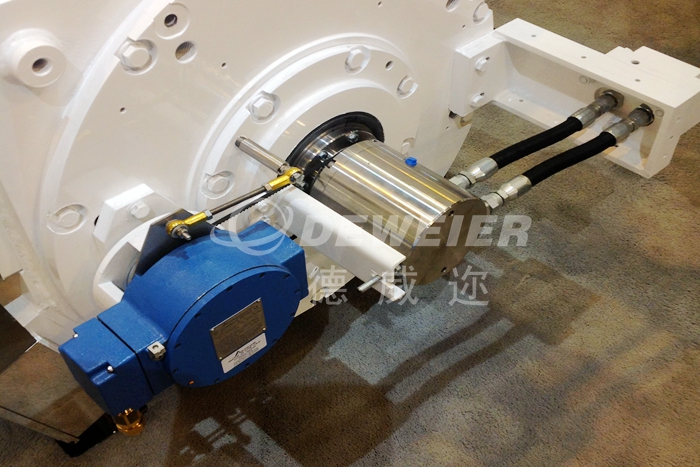

5. Suitable for machining center rotary tables, hydraulic stations, coilers, wind turbines, centrifuges and other equipment;
